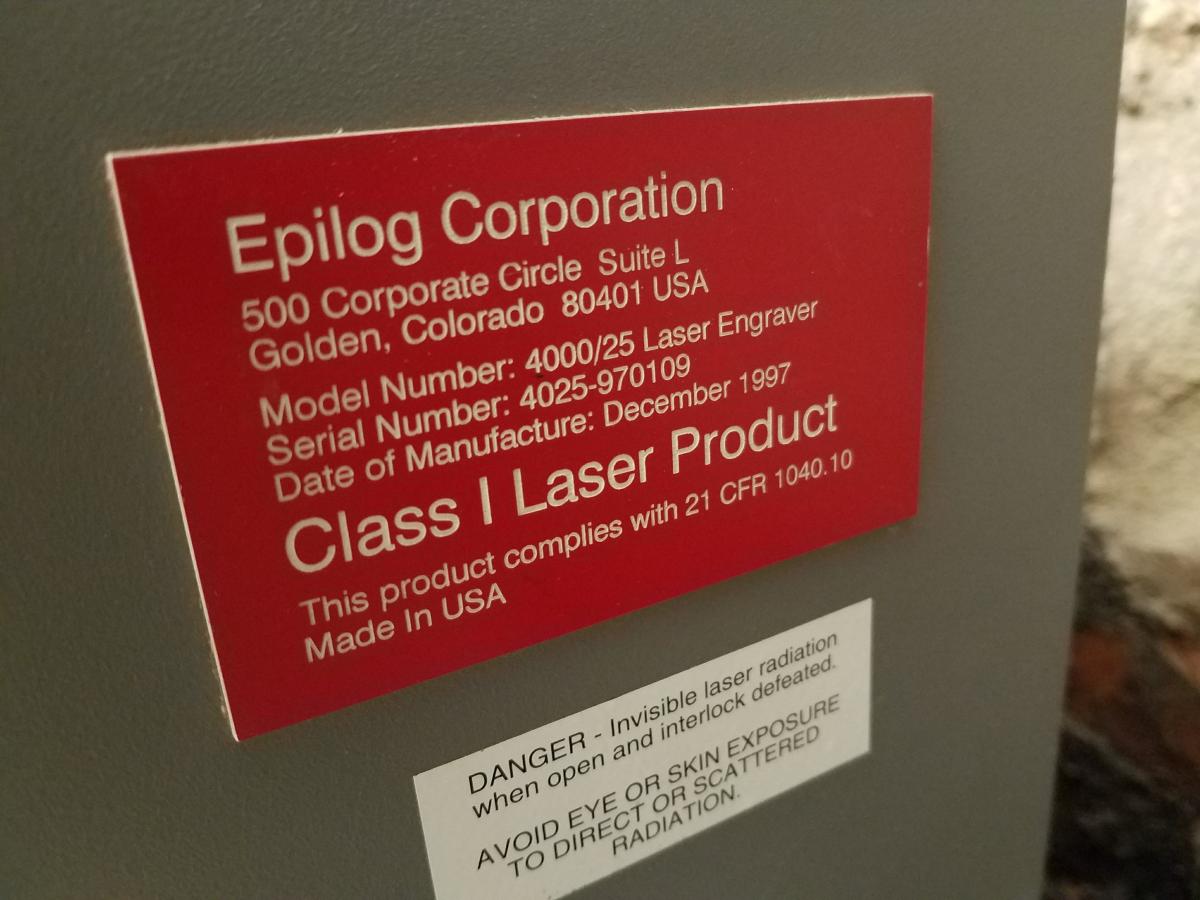

Epilog Laser Cutter

Primary tabs

Status:

Lasercuter is now recharged and functional, although we may need to do some alignment work to get the best results at all spots in the printing area.

You must have the lasercutter badge to use the lasercuter.



Requirements for Use
Required Badges:
Watch Video
Pass Quiz
Facilitator Checkout

Check Out With Facilitator

Community Animators are volunteers who to advise MakeHaven members on projects and show you how to use the tools.

Member Photo Next Scheduled Hours

Marcin Kielkiewicz

3D printing & Lasers


Monday Sep 16, 6:00pm to 9:00pm

Stephen Cebik

Laser cutting, 3D Printing, Vinyl Cutting


Wednesday Sep 18, 8:00pm to 10:30pm

Instructions for Use:

The lasercuter acts like a printer and uses a special printer driver that is installed on the computer connected to the cutter. Printer drivers for Windows can be downloaded at: https://www.epiloglaser.com/tech-support/radius-drivers.htm

There are two way to deliver instructions to the cutter. Raster or Vector. In each case the file must be printed from Corel Draw. Other programs seem to produce an error.

  • Raster is a field of pixels and is good for drawing shaded images. This is drawn much like a regular printer moving from the top toward the bottom of the work.
  • Vector is where the cutter follows the path of a line. This is used for cutting materials. For vector to work you must have a very thin line (otherwise it treats it like a raster). The best way to do this in Corel Draw is to make the line thickness "hairline"

In most cases people choose to create their work in another program such as Inkscape and then move it over to Corel Draw for printing with the lasercuter. In most cases this can by a simple cut and paste. Sometimes there will be issues and you can try the alternate method of opening the saved SVG file (remember to save it in generic, not Inkscape SVG).

You can download this template (To be added) for corel draw which give the layout of the printable area of the lasercuter. It will help you to place your item in the right location.

You must be careful to print only on approved materials. Choosing the wrong materials or even the wrong types of plastics could damage the cutter and lenses or be a health risk.

Tips: on identifying plastics. http://makezine.com/2011/09/22/identifying-unknown-plastics/

When you are almost ready to cut be sure to turn on the exaust fan (switch in the hallway going toward the basement).

Be sure to check the properties of the print job before you send it. This is where you set the laser power and turn on or off the autofocus setting. Typically it is better to use the autofocus tool (set the end of the head to the lower notch on the tool) than rely on the autofocus. Autofocus has failed occasionaly and rammed the build plate into the print head (not good). When you go to print a job, particularly if you have autofocus on, you should stand in front of the lasercutter and make sure it does not fail to focus. If you see the bed rise too high immediately turn the machine off with the power switch in the front.

Always stay with the lasercuter when in operation. Lasercuters do start fires.

If (and when) a small fire starts, stop the machine (it will stop if you open it) and smother or stomp out the fire. If this fails we have a special CO2 fire extinguisher mounted by the machine. This can be used without damaging the electronics. If you do use it, it will need to be recharged so make sure someone on the board knows to do that. If the CO2 extinguisher does not work you will be forced to use the chemical extinguisher. These will destroy the electronics but may be necessary.



Manual


Area of Interest:
fabrication

Materials for Sale

Custom text
Acrylic (Clear w blue protection) 0.060 $12.00 per 21.25"x30.25" Sheet Add to cart
Acrylic Sheet (12 in × 24 in) Cast sheets in various colors good for use in laser cutters $15.00 per Sheet Add to cart
Cast Acrylic Sheet, Clear, 12" x 12" x 0.118" $6.00 per Square Sheet Add to cart
High Impact Polystyrene (white) .030 or .020 - Food Safe $6.00 per 21.25"x30.25" Sheet Add to cart
Laserable plywood, 12" x 12, 1/8" thickness Laserable plywood, 12" x 12", 1/8" thickness -- HALF SHEET OF LASERABLE WOOD, You will need to laser in half in there aren't half... $3.00 per 1/2 sheet Add to cart
Laserable plywood, 12" x 24, 1/8" thickness Sheets of plywood, 12" x 24, 1/8" thickness $4.50 per sheet Add to cart
Laserable Rubber Sheet Laser-safe rubber for stamps $15.00 per Sheet Add to cart
Laserable Rubber Square Inch Please try to leave as much usable area. Use sheets that have already had cutouts first. $0.30 per per square inch Add to cart
Square Clear Acrylic 12" x 12" x 0.236" Cast Acrylic purchased form Amazon https://www.amazon.com/gp/product/B009AEAG2E/ref=oh_aui_detailpage_o02_s00 $7.00 per Sheet Add to cart
